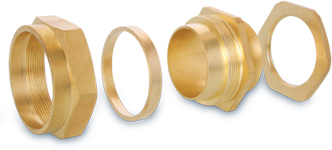

Brass BW 3 Parts cable glands Brass BW  4 Part Cable Glands

BW 4 PT Cable Glands Brass BW 3 part cable glands Brass BW  4 Part Cable Glands
Brass BW 3 Parts cable glands Brass BW  4 Part Cable Glands


Size of BW 3 Part and 4  parts Armoured cable glands Armoured cable gland kits packs 20 mm to 90 mm S & L
Standard BS 6121
Application Dry Indoor, for use with all types of SWA Cable
Function Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire.
Material Brass BS 2874 CZ121 Pb3 or MS58 CDA 360
Optional Threads METRIC, NPT, BSP, PG or as specified
Finish Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp. -800 C to +3000 C
Accessories Matching Accessories available like PVC Shrouds, Brass Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement BW 3 part cable gland kits gland packs can be offered with LSF or normal shrouds.


Technical Data:
Size Thread Length A B A/F A/C
20S M20 10.00 13.00 18.00 23.50 26.00
20L M20 10.00 14.00 21.00 25.00 28.00
25S M25 10.00 18.00 24.00 31.00 35.50
25L M25 10.00 20.50 27.00 33.00 37.00
32S M32 10.00 27.00 33.50 40.50 45.50
32L M32 10.00 27.00 33.50 40.50 45.50
40S M40 13.00 31.50 39.50 45.50 50.50
40L M40 13.00 33.00 41.50 49.00 55.00
50S M50 13.00 39.50 48.50 56.50 63.50
50L M50 13.00 44.50 54.50 62.50 70.50
63S M63 14.00 50.20 59.20 68.80 77.00
63L M63 13.50 56.50 65.50 76.00 86.00
75S M75 15.00 63.50 72.00 84.00 94.50
75L M75 15.00 69.50 78.50 90.00 101.00
90S M90 20.00 76.00 85.00 100.00 111.20
90L M90 18.00 78.40 90.50 103.00 115.00

Also available in Kit Packaging and also as per the specification.
